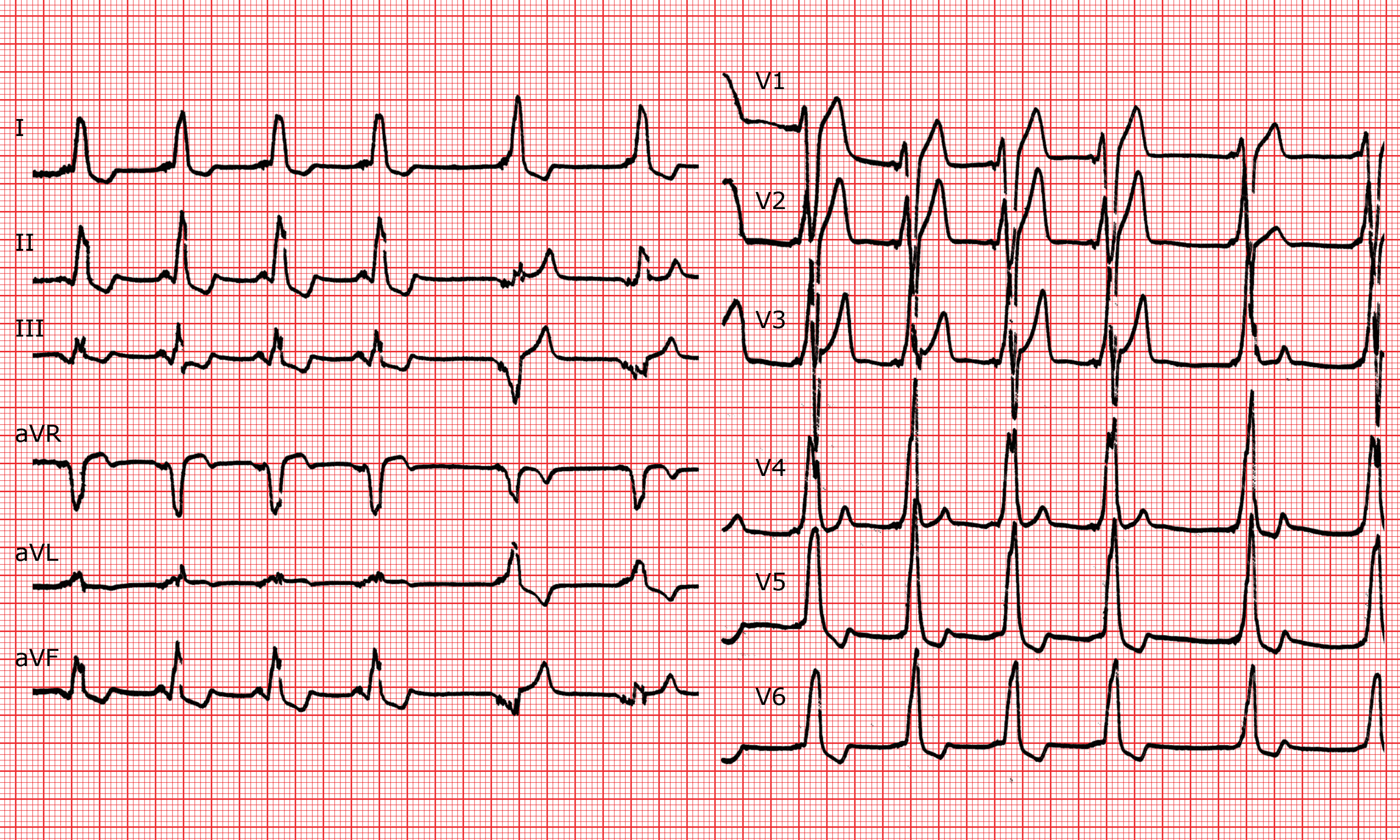

ECG 006

Description

Basic rhythm

Sinus rhythm, regular at 80 bpm for the first 4 beats.

P waves

Normal.

PR interval

Short (< 120 ms), with a delta wave.

QRS

Enlarged (160 ms) with two distinct morphologies, sudden change of the axis between the fourth and fifth QRS complex.

ST Segment, T waves

Diffuse changes, non-specific in the terminal phase.

QT interval

Normal.

Zones

Sudden change in the QRS axis. Wide QRS complexes.

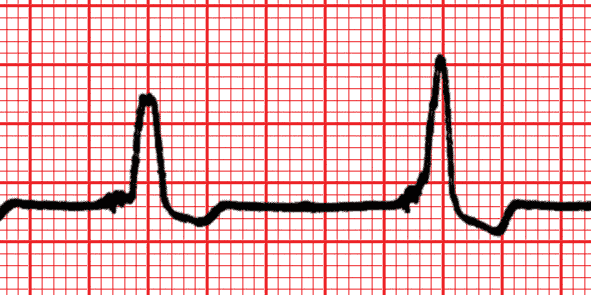

Short PR interval with ∂ wave initating the QRS complex.

Diagnostic

Wolff-Parkinson-White syndrome (WPW) with 2 accessory pathways, one antero-septal on the right and the other infero (posterior)-septal.

Comments

The enlarged QRS complexes, combined with the short PR interval and the presence of a delta wave, are typical of WPW syndrome. The QRS axis changes depending on which of the two accessory pathways the A-V conduction uses: An antero-septal accessory pathway on the right (with significant pre-excitation) for the first four complexes, an infero (postero)-septal accessory pathway on the right for the fifth complex, a fusion complex, which is the result of simultaneous activation of the normal conduction pathways and the two accessory pathways. It is the change in the heart rate that explains the fact that the inflow uses one or the other accessory pathways.

Keywords

Reading level

3 / 3
