ECG 010

ECG 010

Description

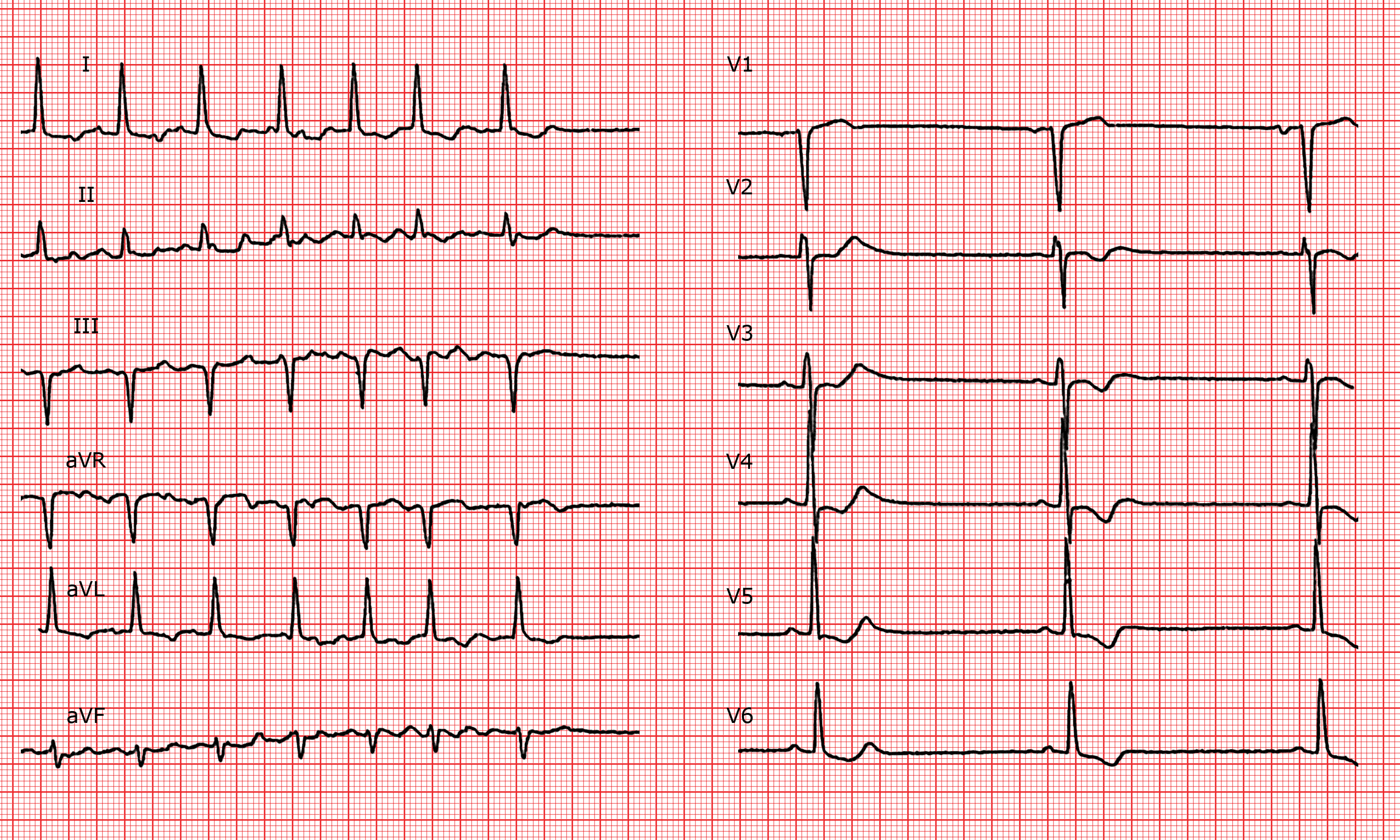

Continous recording.

Left side of the trace (peripheral leads)

Basic rhythm: tachycardia irregularly irregular between 105 and 125 bpm with a sudden stop after the seventh QRS complex (atrial fibrillation).

P waves

Absent.

QRS

Normal axis and morphology.

ST segment

Isoelectric.

T waves

Non-specific changes.

QT interval

Normal.

Right side of the trace (precordial leads)

Basic rhythm: sinus bradycardia, appearing to be regular at 33 bpm.

P waves

Variable morphology.

PR interval

Normal.

QRS

Normal morphology.

ST segment

Slight depression.

T waves

Inverted from V2 to V6.

QT interval

Normal.

Zones

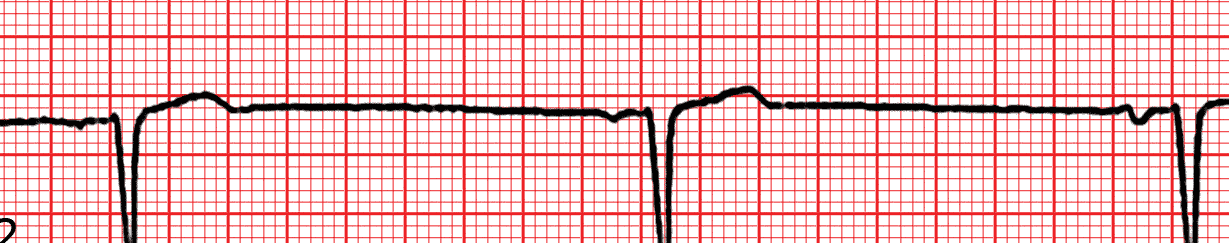

Multiple P waves morphology. Bradycardia.

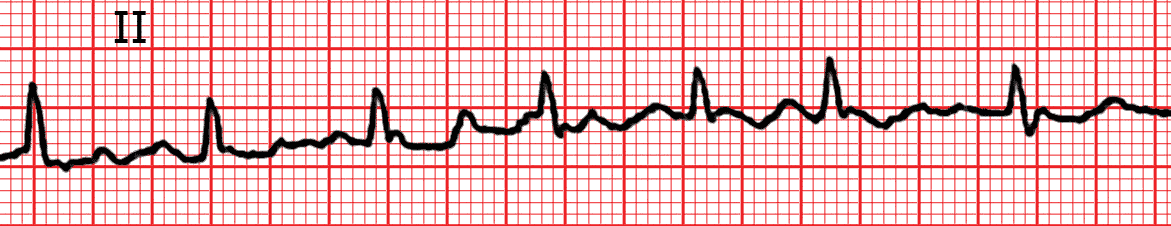

Irregularly irregular tachycardia typical for atrial fibrillation.

Diagnostic

Tachycardia-bradycardia syndrome.

Comments

On the left side of the trace, atrial fibrillation is present. On the right side, P waves with variable morphologies, and therefore multifocal P waves, can be clearly identifed. This trace is a typical example of tachycardia-bradycardia syndrome which is one of the conditions caused by sinus node disease. In the absence of ischaemia, any type of cardiopathy (hypertensive cardiopathy being the most common) or drug treatment, repolarisation disturbances are to be considered as "post-tachycardic".

Category

Conduction abnormalities

Keywords

Reading level

1 / 3
