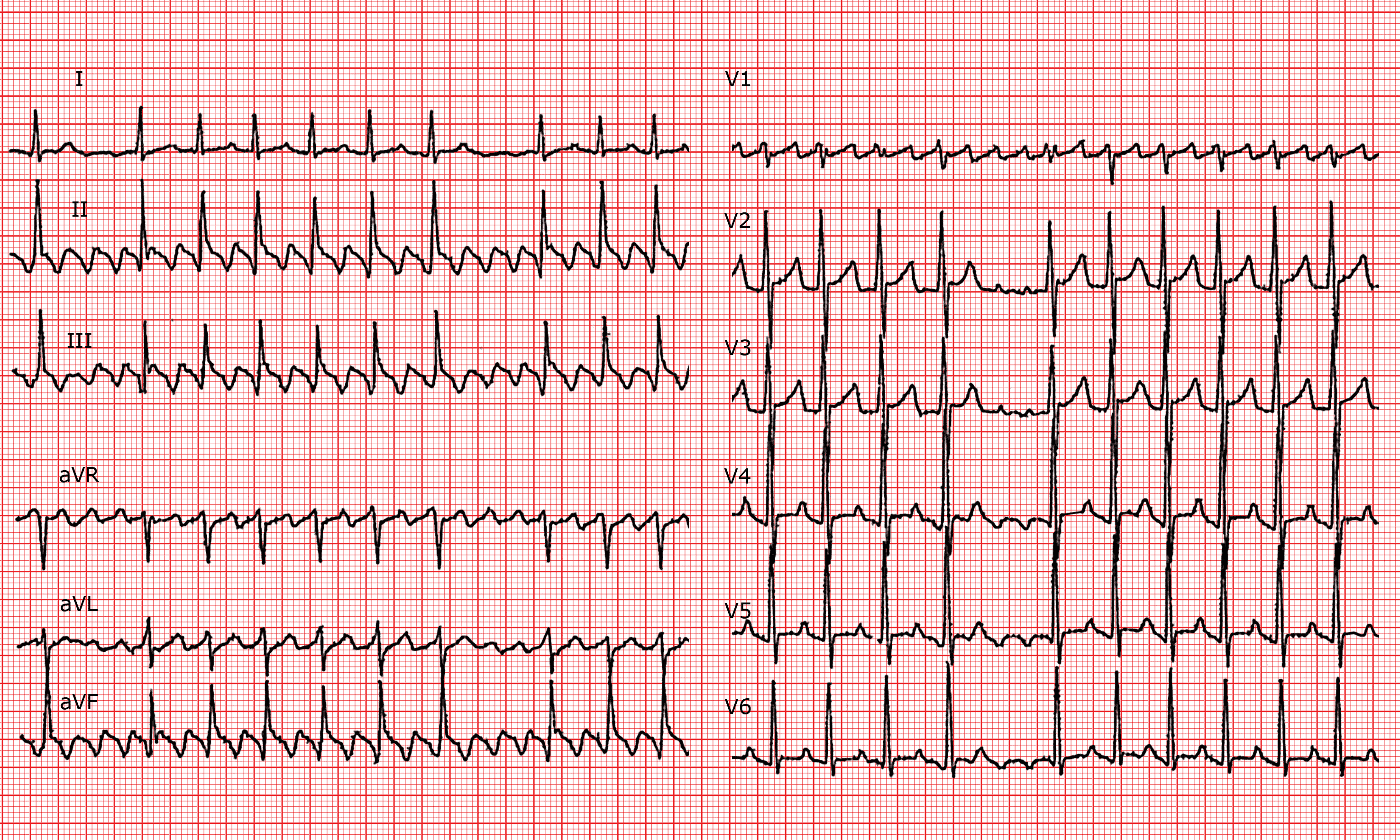

ECG 012

Description

Basic rhythm

Irregular narrow complex tachycardia ranging from 75 to 150 bpm.

P waves

Absent; regular and monotone oscillations of the baseline with a sawtooth or factory roof pattern (F waves) at a rate of 300/min.

PR interval

Not definable.

QRS

Normal axis and morphology.

ST segment

Isoelectric.

T waves

Appear normal (sometimes concealed by the F waves).

QT interval

Normal.

Zones

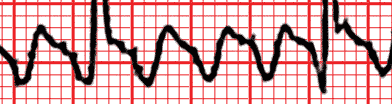

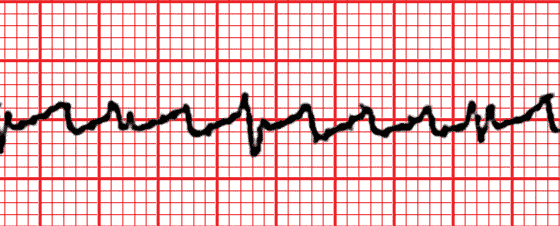

F waves with "sawtooth" aspect typical for atrial flutter.

Diagnostic

Typical atrial flutter with 2:1 or 4:1 variable A-V conduction.

Comments

The regular atrial activity at 300/min is characteristic of typical flutter, which is a reentry circuit in the right atrium with an anti-clockwise rotation. The A-V node cannot transmit impulses of such a high rate. It acts as a filter that protects the ventricles by avoiding too fast a rhythm. A-V conduction is usually 2:1. This can also be 3:1 or even 4:1, as with this trace, where the RR interval is sometimes doubled.

Keywords

Atrial flutter

Reading level

1 / 3
