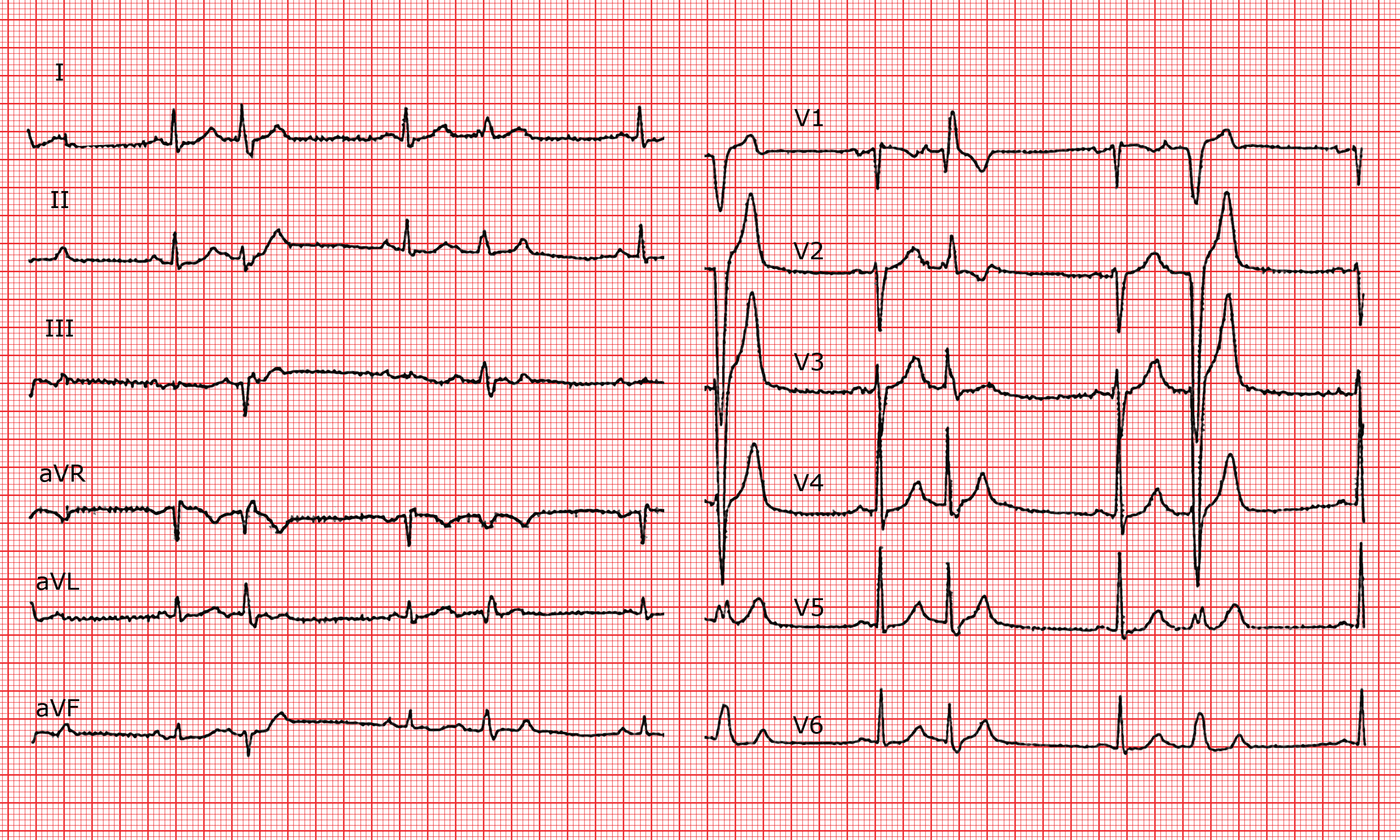

ECG 030

Description

Basic rhythm

Sinus rhythm (for the narrow QRS complexes on the trace).

P waves

Normal before a narrow QRS complex, negative in aVL, positive in V1 before an enlarged QRS complex.

PR interval

Normal.

QRS

Alternation of normal and enlarged QSR complexes, complete right bundle branch block type (rSR pattern in V1) and left bundle branch block type (first complex in the precordial leads).

ST segment

Isoelectric (for the narrow QRS complexes).

T waves

Normal in the sinus rhythm or inverted during the extrasystoles.

QT interval

Normal.

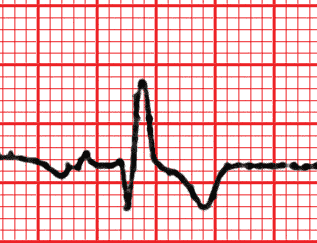

Zones

Diagnostic

Atrial bigeminy with conduction disturbances.

Comments

The atrial bigeminy occurs at a moment when either the right branch or the left branch of the bundle of His is in the refractory phase. The QRS complexes take on a bundle branch block pattern, either right or left. These atrial extrasystoles can cause paroxystic atrial fibrillation (focal AF). Their morphology shows that they originate in the left atrium.

Keywords

Reading level

2 / 3
