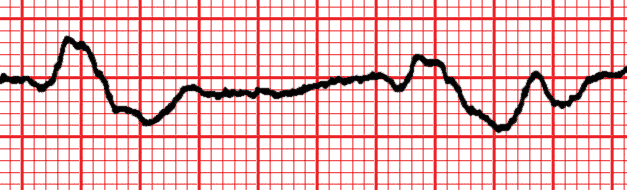

ECG 032

Description

Basic rhythm

Regular at 50 bpm.

P waves

Not visible.

PR interval

Not definable. At irregular intervals, spikes are present (stimulation artefacts).

QRS

Enlarged (200 ms). Axis -10°.

ST segment, T waves

Diffuse and non-specific changes in the terminal phase.

QT interval

Normal.

Zones

Diagnostic

Accelerated idioventricular rhythm (AIVR). VVI pacemaker malfunction.

Comments

The trace, consisting of enlarged QRS complexes with a low heart rate that are not preceded by a P wave, is that of an AIVR, independent of a pacemaker that has malfunctioned. There is no relation between the spikes and the QRS complexes. The irregularity of the spikes shows that the pacemaker has partially preserved its sensing function. It is not a case of the battery running out but rather of the ventricular sensor malfunctioning.

Keywords

Pacemaker

Reading level

2 / 3
