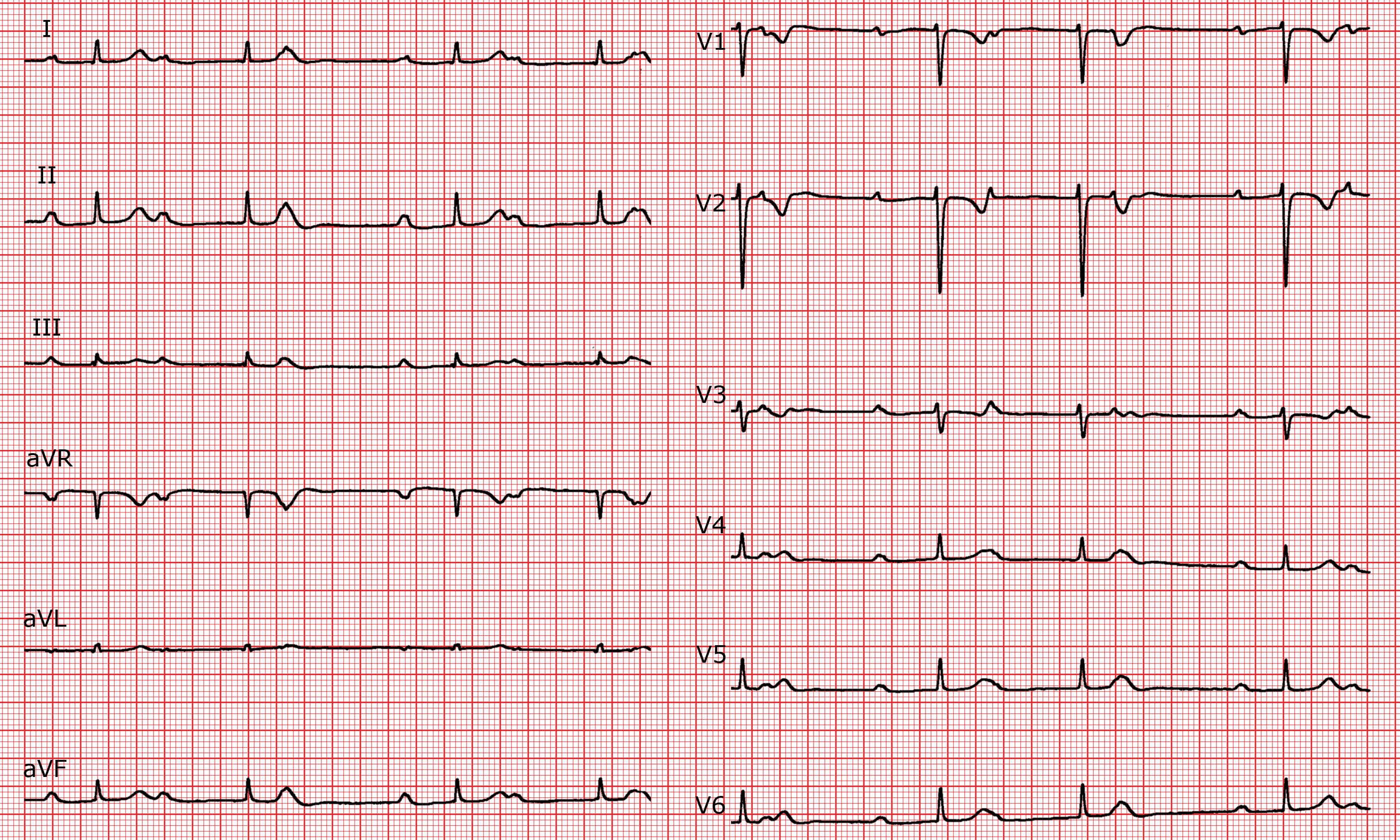

ECG 038

Description

Basic rhythm

Sinus rhythm at 75/min.

P waves

Normal.

PQ interval

Constantly prolonged, increasing until a blocked P wave.

QRS

Normal but with a delayed progression of the R wave in the precordial leads.

T waves

Negative from V1 to V3.

Zones

Diagnostic

Second degree Wenckebach-type A-V block (Mobitz type 1). Juvenile-type repolarisation disturbances.

Comments

In the absence of cardiopathy, the T waves, which are negative up to V3, can be considered to be a persistant juvenile form in this case (29 year-old patient).
