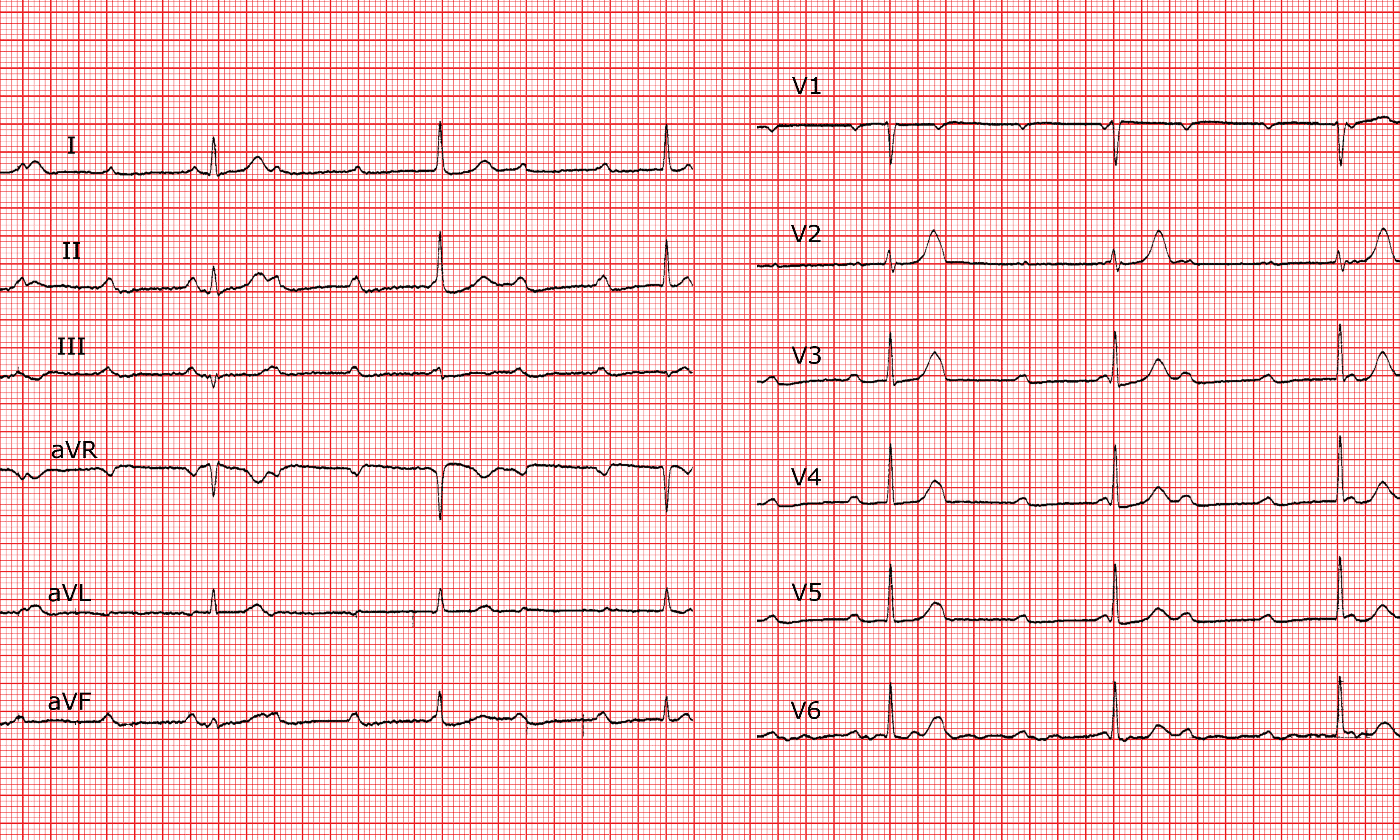

ECG 052

Description

Basic rhythm

Sinus rhythm, regular at 105/min (for the P waves) and 38/min for the QRS complexes.

P waves

Normal, completely dissociated from the QRS complexes.

PR interval

Random.

QRS

Axis and duration normal.

ST segment

Isoelectric.

T waves

Normal.

QT interval

Normal.

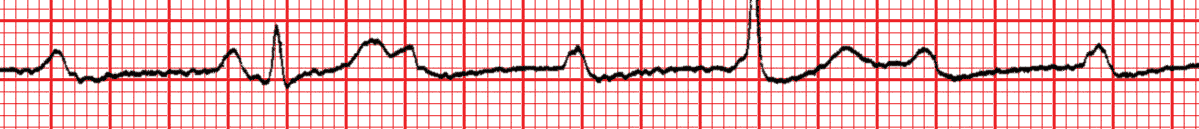

Zones

Different morphology of the QRS complex.

Diagnostic

Complete A-V block with junctional escape rhythm (or high degree block).

Comments

The complete dissociation of P waves and QRS complexes (with a higher heart rate for the P waves than the QRS complexes) confirms the diagnosis of complete A-V block. If the QRS complexes remain narrow, it is because the escape occurs in the nodal region. In the present case, the morphology of the second QRS complex is slightly different from the others, probably due to an A-V conduction that occassionally reestablishes itself, in which case it is more accurate to call this a high degree A-V block than a complete block.
