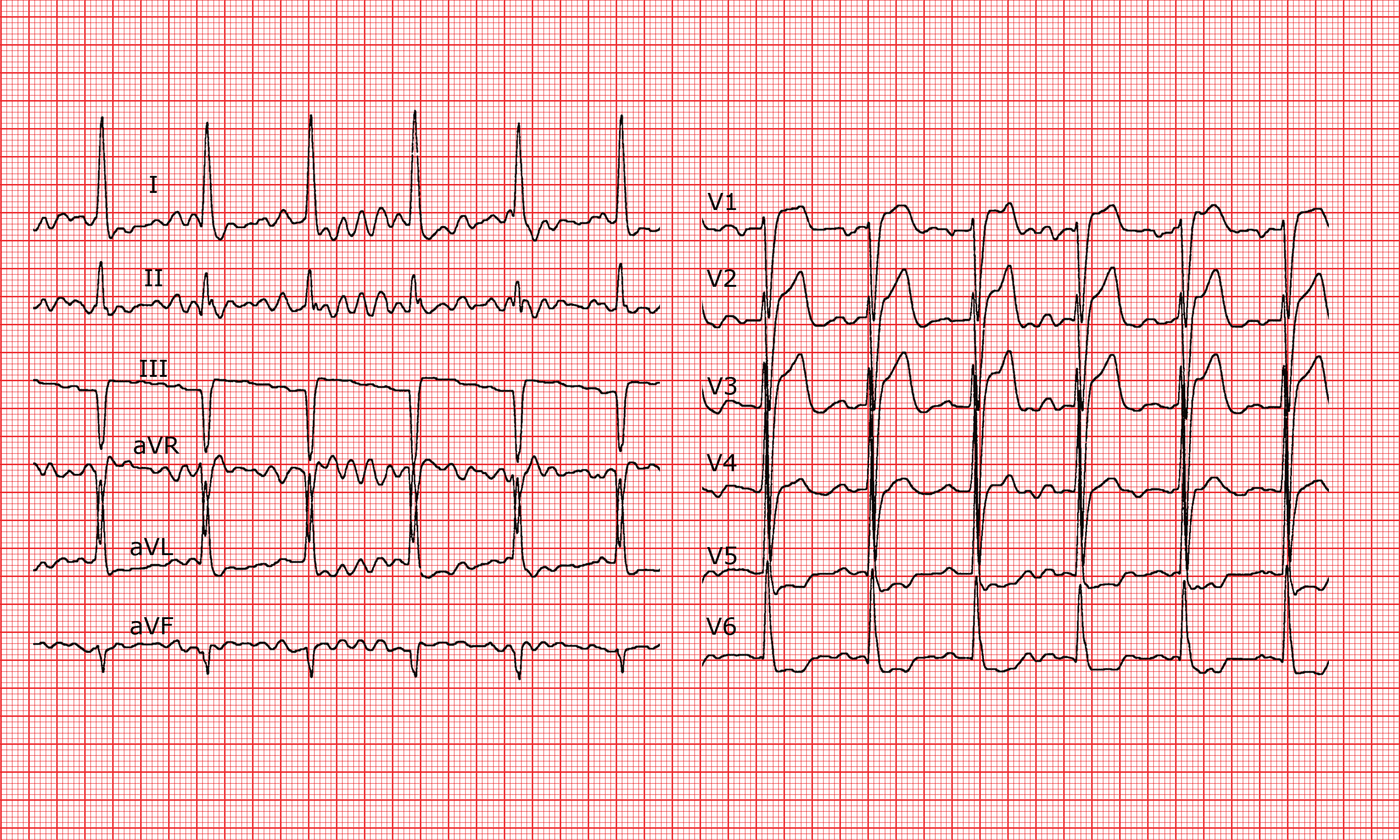

ECG 108

Description

Basic rhythm

Sinus rhythm, regular at 75 bpm.

P waves

Occasionally visible in V1, with significant oscillations in the baseline.

PR interval

Normal.

QRS

QS pattern in III and aVF; widespread increase in amplitude, normal duration.

ST segment

Elevation from V1 to V3, depression in V5 and V6.

T waves

Negative in V5 and V6.

QT interval

Normal.

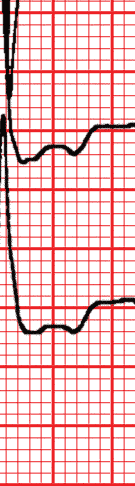

Zones

Diagnostic

Interference in the recording. Previous inferior infarction. Left ventricular hypertrophy.

Comments

Initially, the baseline oscillations resemble those seen with atrial fibrillation, but this is quickly ruled out since the QRS complexes are regular. In addition, P waves can be seen in the precordial leads. This trace is contaminated by the patient's Parkinson's tremor.

The axis deviation is due to the Q waves in the inferior leads, evidence of a previous inferior infarction, which also cause the changes in the repolarisation. The increase in R wave amplitude, particularly striking in I, suggests left ventricular hypertrophy.
