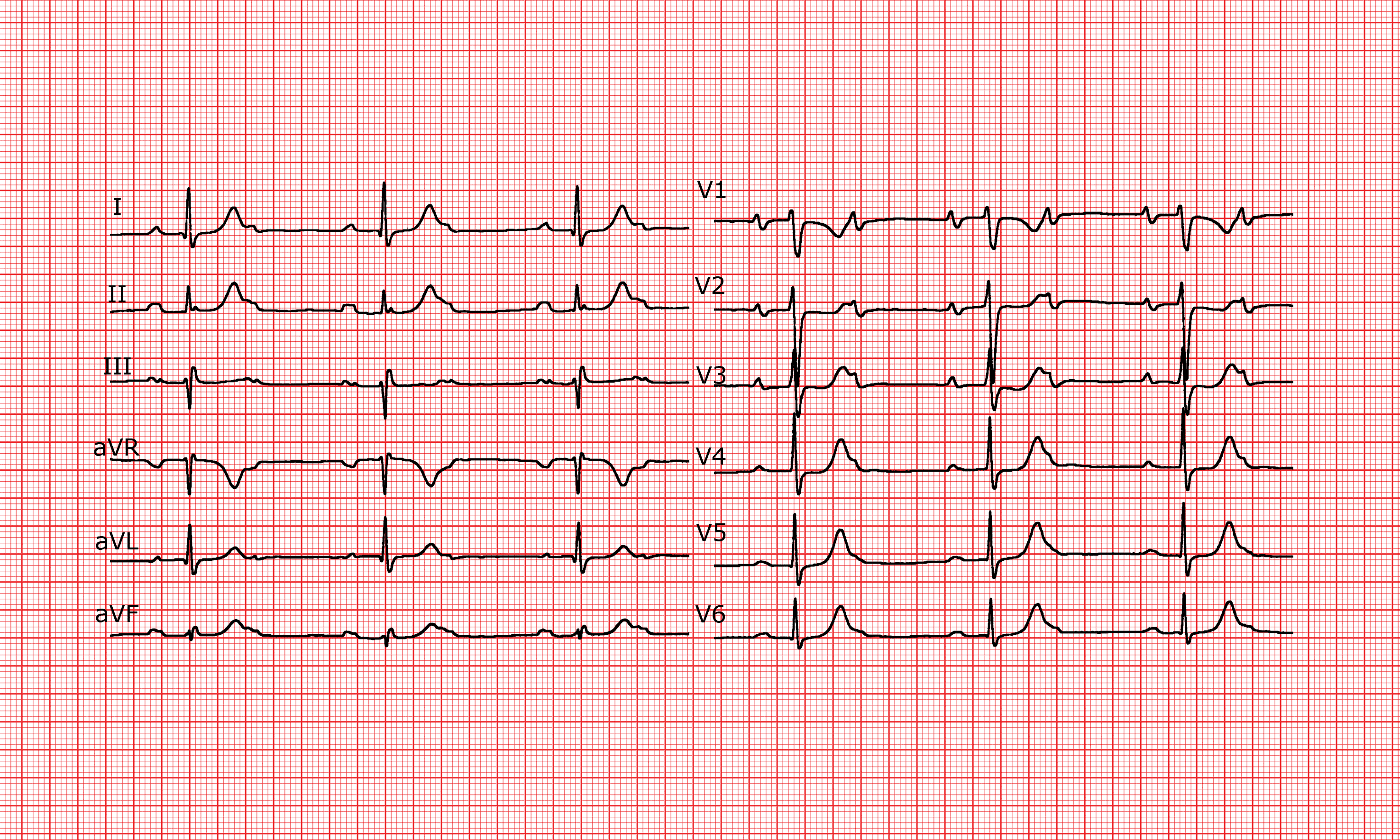

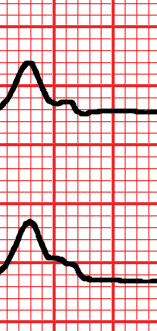

ECG 142

Description

ECG carried out on the same patient as ECG no. 141.

Basic rhythm

Sinus rhythm at 92 bpm.

PQ interval

Prolonged. Every second P wave is not conducted to the ventricles. The PP interval shows variation of approximately 40 ms.

QRS

Normal.

QT interval

Normal.

Zones

Diagnostic

Second degree A-V block 2:1.

Comments

On this trace it is not possible to say whether the A-V block is a Mobitz type I or Mobitz type II block. The previous trace answers this question, since it allows the block to be located to the A-V node with an extremely reduced Wenckeback period of only 2 QRS complexes. The variation of PP interval is called a ventriculophasic variation.

Keywords

Second degree AV block

Reading level

2 / 3
