ECG 179

Description

Baseline rhythm

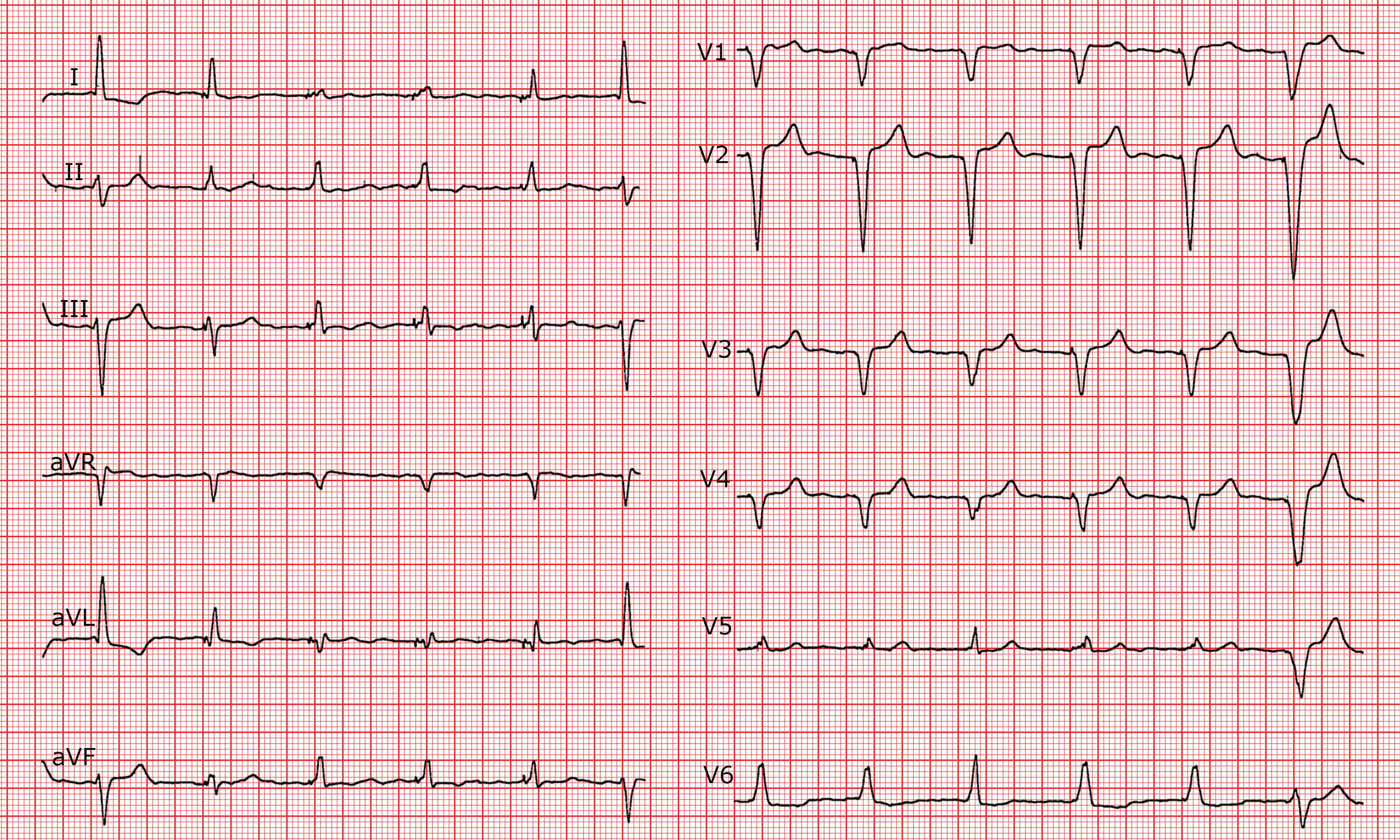

Regular at 75 bpm.P-waves: non-visbile.PR interval: non-measurable.QRS: broadened (140 ms) and sometimes preceded by a spike. Variable axis.ST segment: depressed in aVL and V6.T-waves: sometimes negative in I and aVL.QT interval: normal.

Zones

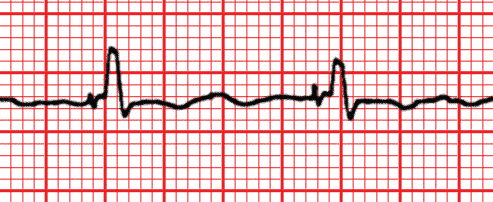

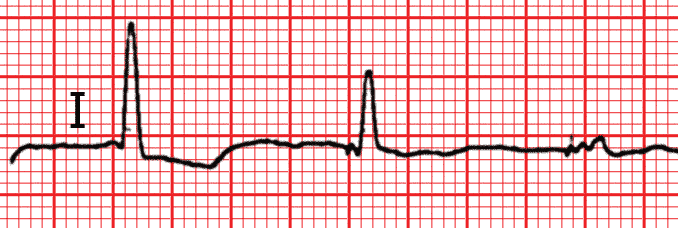

3 complexes are present. The first is not paced, the second on is a fusion beat and the third one is paced.

Diagnostic

Atrial fibrillation with a normal-functioning VVI pacemaker.

Comments

The first complex on the left is not paced and corresponds to a normal QRS complex with left anterior hemiblock. The next QRS complex is preceded by a spike but is of a different morphology of the following QRS complexes, it is narrower. It corresponds to a fusion, namely a complex which is half spontaneous and half paced. We don’t see P-waves because there is atrial fibrillation.

Keywords

Reading level

2 / 3
