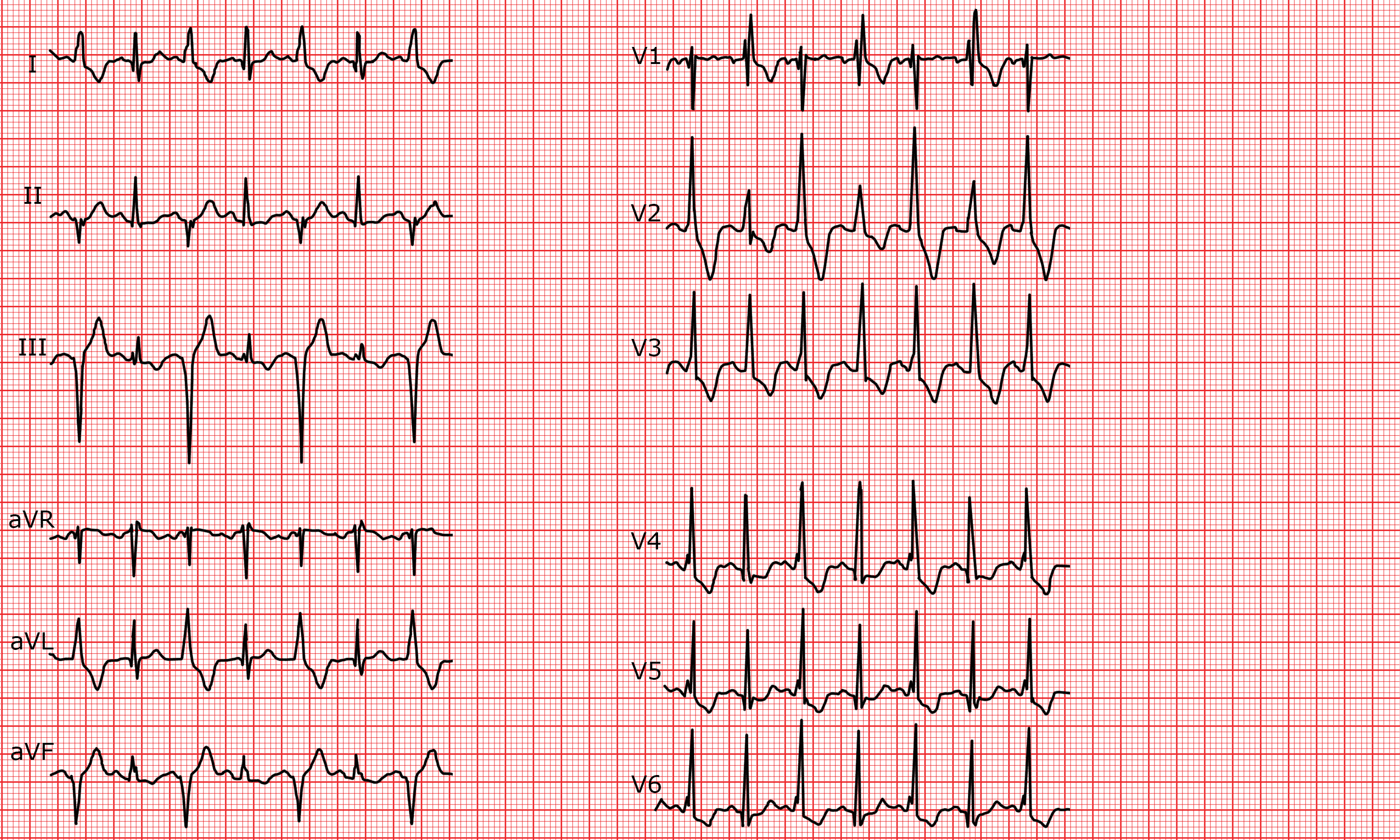

ECG 198

Description

Baseline rhythm

Regular at 150 bpm.P-waves: normal.PR interval: variable.QRS: broadened but with 2 morphologies.ST segment: depressed in the precordial leads.T-waves: negative from V2 to V6.QT interval: normal.

Zones

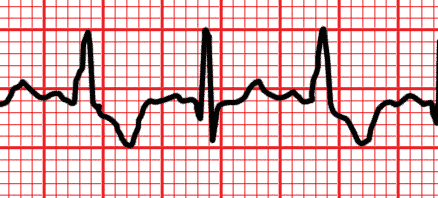

Alternance of short and normal PR interval. Intermittent ∂ wave.

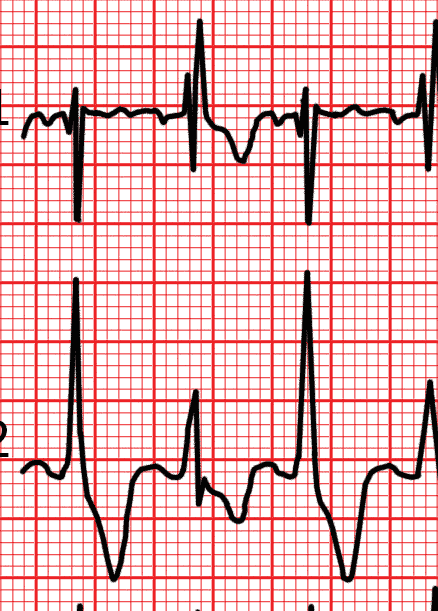

Alternance of a QRS complex with pre excitation and normal QRS complex with right bundle branch block.

Diagnostic

Sinus tachycardia with RBBB alternating with pre-excitation

Comments

This tracing shows sinus tachycardia with a RBBB morphology for every second complex (QRS 2,4,6) with an rSR’ in V1. The other QRS complexes are broad and exhibit pre-excitation with a short PR and a ∂-wave. This is therefore intermittent pre-excitation (WPW syndrome). The refractory period of the accessory pathway is not too short otherwise the pre-excitation would be constant. Note that analysis of the pre-excited QRS is more difficult due to the underlying RBBB in sinus rhythm. Finally, the ST depression is of no significance, because in the presence of a depolarization abnormality, there is also a repolarization abnormality.

Keywords

Reading level

2 / 3
