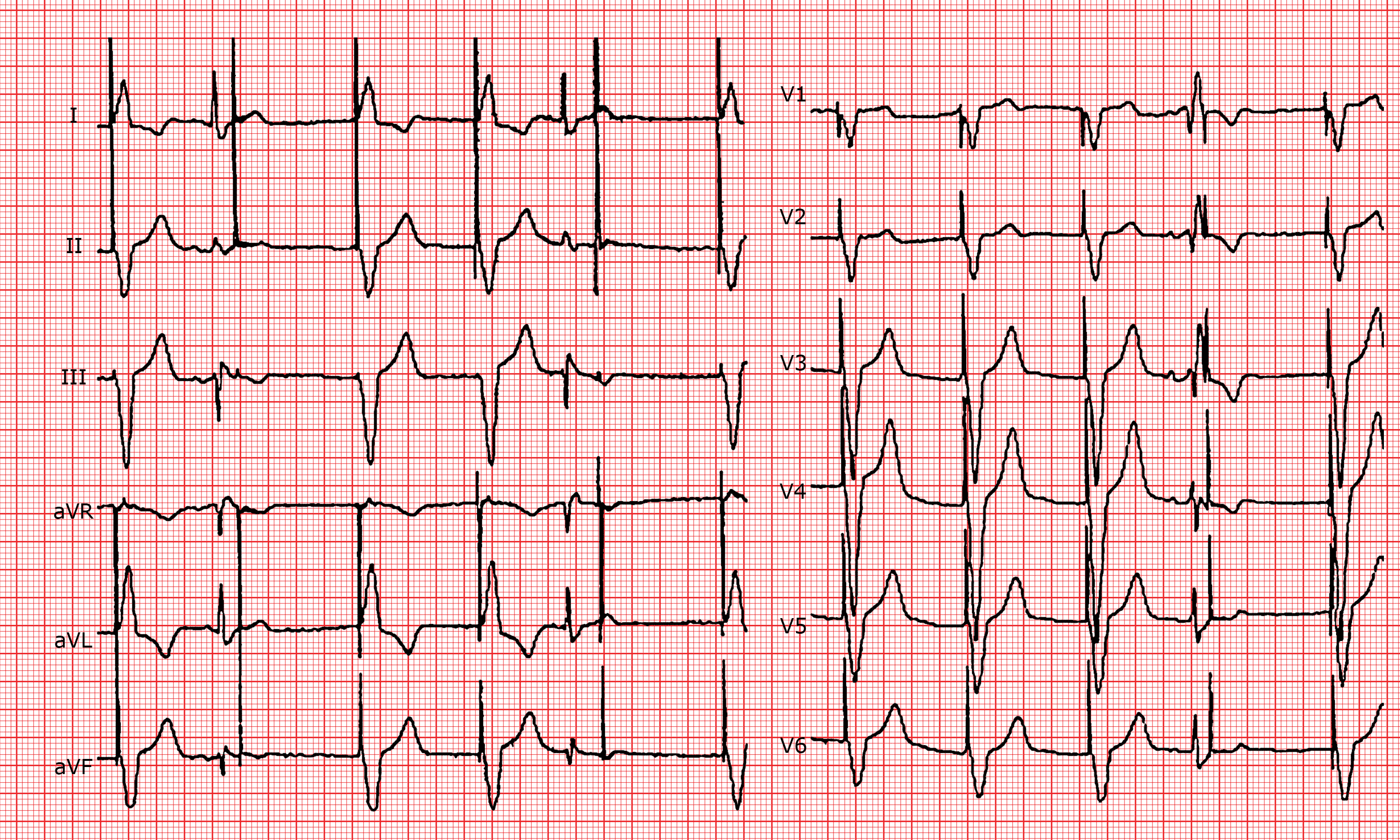

ECG 199

Description

Baseline rhythm

Pacing at 70 bpm.P-waves: sometimes visible before the QRS (second complex from the left), normal axis and duration.PR interval: normal when it can be measured.QRS: broad because it is preceded by a spike: When it follows a P-wave it is broad with a duration of 140 ms, rSR’ in V1. Normal axis.ST segment: isoelectric.T-waves: abnormal due to the pacing.QT interval: normal.

Zones

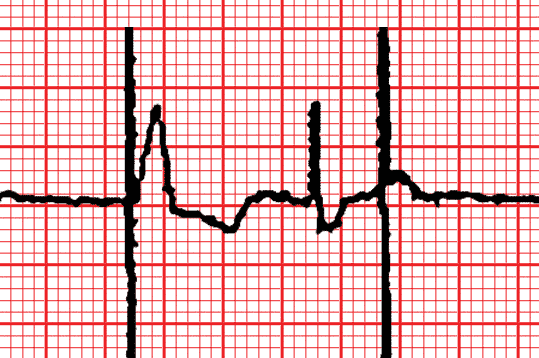

Spike in the T wave, without QRS complex

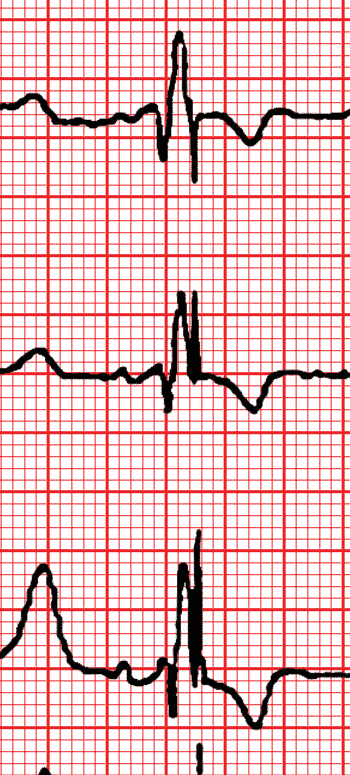

QRS complex preceded by a P wave, and spike not followed with a QRS complex..

Diagnostic

VVI pacemaker dysfunction with sensing malfunction. Otherwise sinus rhythm and RBBB.

Comments

There is clearly a VVI pacemaker which captures the ventricles correctly as shown by the 1st, 3rd and 4th complexes. The polarity of pacing is unipolar given the amplitude of the spike. On the other hand, we see that the spikes are on the T-wave which signifies the pacemaker’s failure to sense the QRS. There is no capture failure because the spikes which are not followed by a QRS occur when the ventricle is still refractory after the normal QRS complex (except for RBBB).

Keywords

Pacemaker

Reading level

1 / 3
