ECG 200

ECG 200

Description

Baseline rhythm

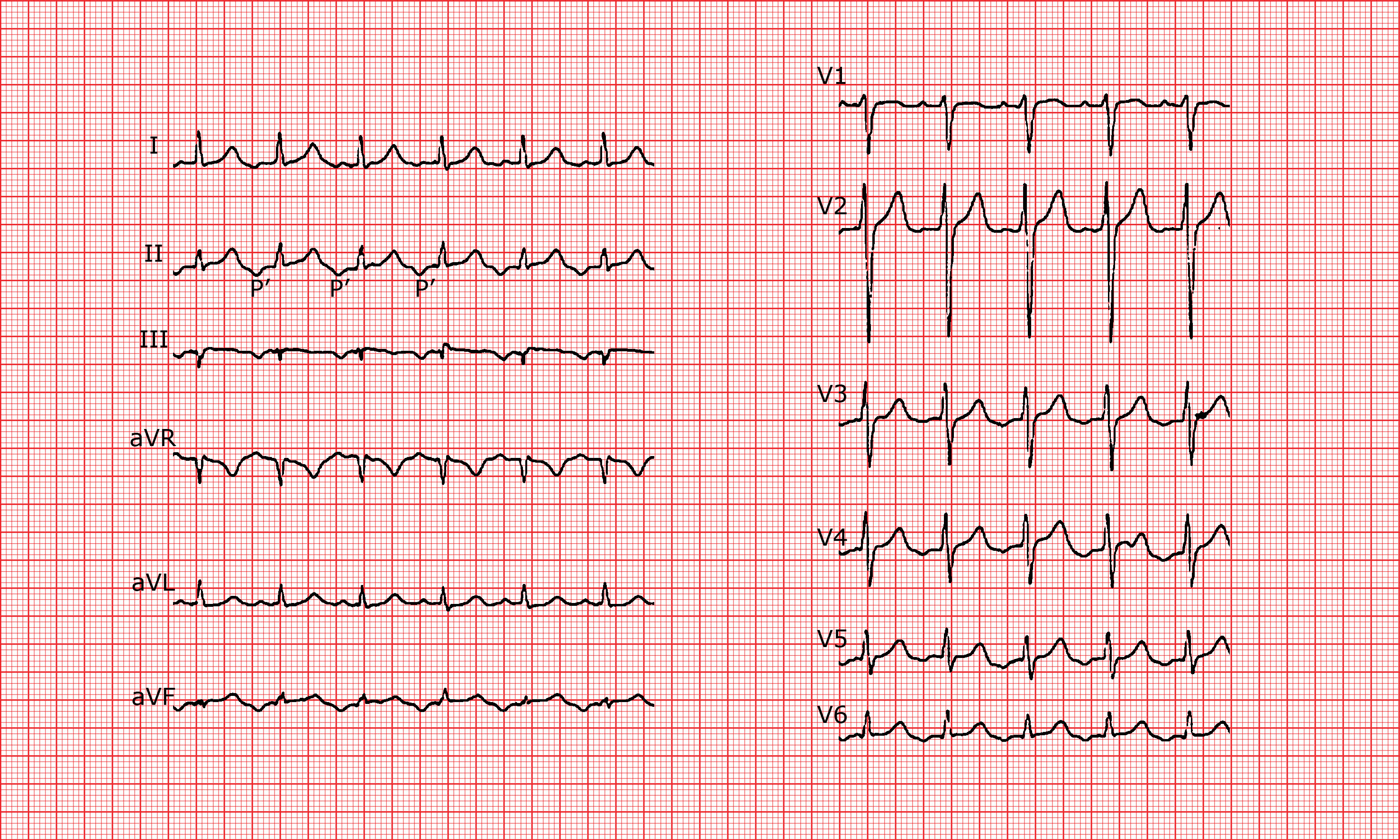

Tachycardia at 102 bpm.P-waves: negative in II, III and aVF.PR interval: normal.QRS: normal.ST segment : normal.T-waves : negative from V1 to V4.QT interval: normal.


Zones

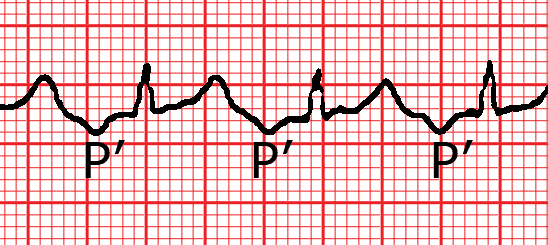

Negatives P' waves in II, III and aVF. Interval RP' > P'R.

Diagnostic

Atrial tachycardia originating from the region of the coronary sinus.


Comments

This is a narrow complex tachycardia with P’-waves which are clearly visible but which depolarize the atria in a caudo-cranial fashion. The differential diagnosis, owing to the interval RP’>P’R, is between an trial tachycardia, a permanent junctional re-entrant tachycardia (PJRT) and a nodal tachycardia utilizing the fast pathway as the anterograde limb and the slow pathway as the retrograde limb. It is often the history which helps clinch the diagnosis. Atrial tachycardia generally affects adults, sometimes the elderly. PJRT is incessant in children and the atypical form of nodal tachycardia has a predilection for young adults with identifiable crises.


Category

Arrhythmia


Keywords


Reading level

2 / 3
