ECG 208

Description

Baseline rhythm

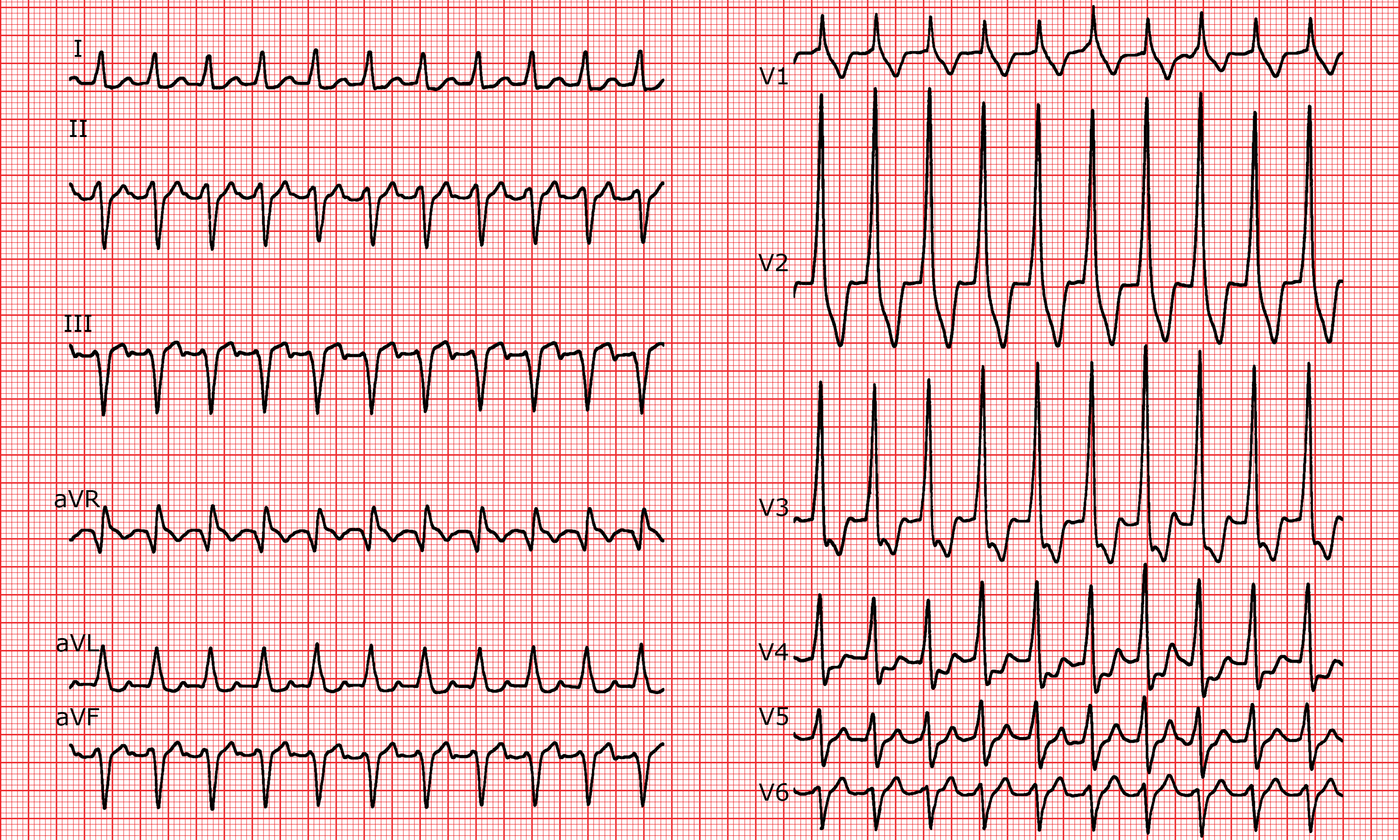

Regular tachycardia at 150 bpm.P-waves: visible halfway between the QRS complexes – in aVF and III.PR interval: 200 ms.QRS: slightly broadened (100 ms). Axis -45º.ST segment: depressed from V2 to V4.T-waves: negative in V2, V3 and V4.QT interval: normal.

Zones

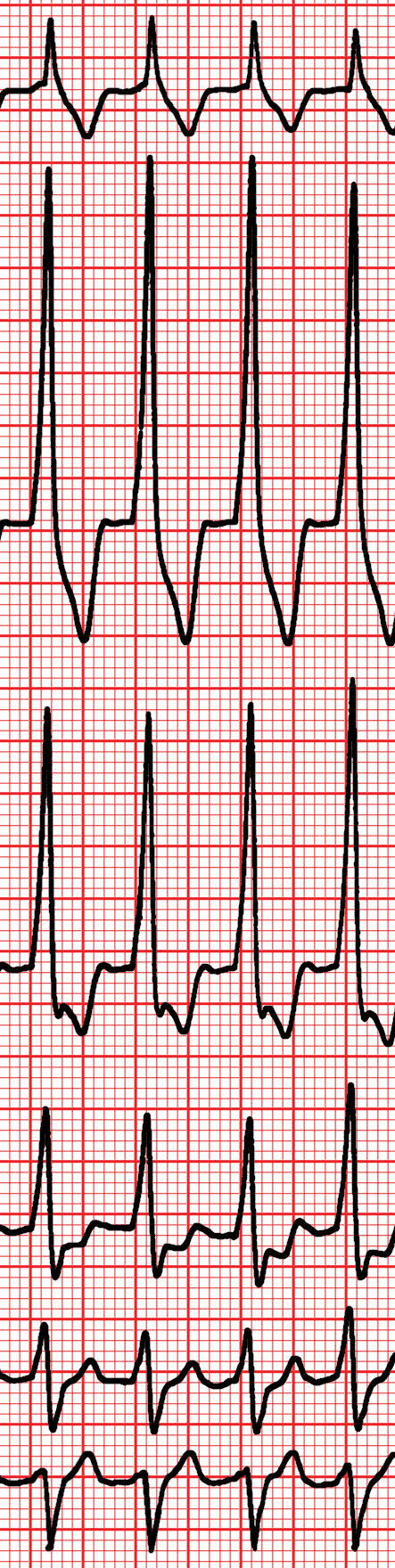

Wide QRS complex tachycardia. Right bundle branch block morphology with r/s ration < 1 in V6.

Diagnostic

Ventricular tachycardia with retrograde conduction.

Comments

This is a tachycardia involving a QRS complex of 100 ms, so not broad. The morphology of the QRS in V1 is of the type RBBB with an r/s <1 in V6. This suggests a ventricular tachycardia. In addition, in aVR there is a q-wave with a duration of > 40 ms. All these features point to ventricular tachycardia. The fact that the QRS complexes are not very broad is due to the fact that the tachycardia originates from a location close to the normal conduction pathway.

Keywords

Ventricular tachycardia

Reading level

3 / 3
